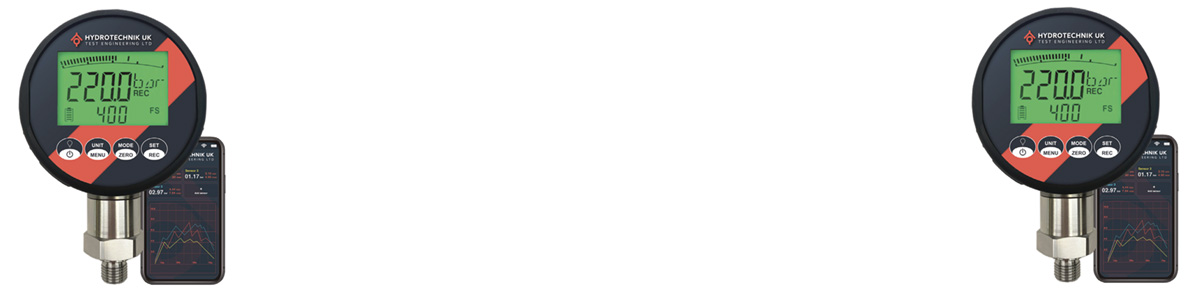

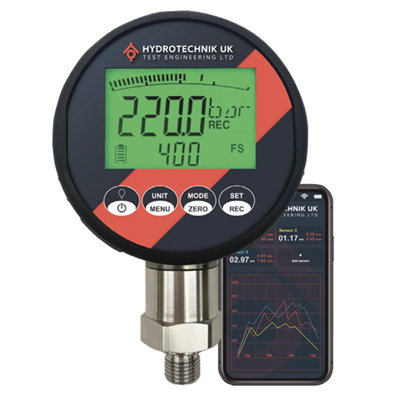

WLB-DDPG Watchlog Bluetooth digital pressure gauge

WLB-DDPG series digital pressure gauges are designed for both stationary and mobile measurement,

display and datalogging of pressure. They can be used as reference pressure gauges to simplify the

checking, adjustment and calibration of other pressure measurement devices directly on site. Excellent

protection against dust and moisture is provided by a membrane keypad with rubber butons and rubber

protective shroud.

• High-accuracy digital pressure measurement with an accuracy of ±0.2%

• Internal datalogging of time, date, actual pressure, and MIN/MAX value.

• Easy data transfer as CSV files to PC/laptop for further analysis in spreadsheets, databases or

Watchlog CSV Visualizer.

• Compatible with the Watchlog Bluetooth iOS and Android Apps for visualisation and datalogging on

your mobile device.

• Accuracy <0.2% FS.

• Ranges from -1 to 1000 bar.

• 7000 data records per test.

• Space for 10 tests max 48h each.

• Recording rate up 100ms.

• Compatible with the Watchlog Bluetooth mobile app.

• Back-lit display with bar graph & min/max.

• Selectable display of temperature.

• 3 x 1.5Vdc AAA batery supply.

• Compact and Rugged IP67.

• 270° Rotatable Display.

Part number:

Watchlog Bluetooth Datalogging Digital Pressure Gauge:
